Model No: Composite steel grating plate

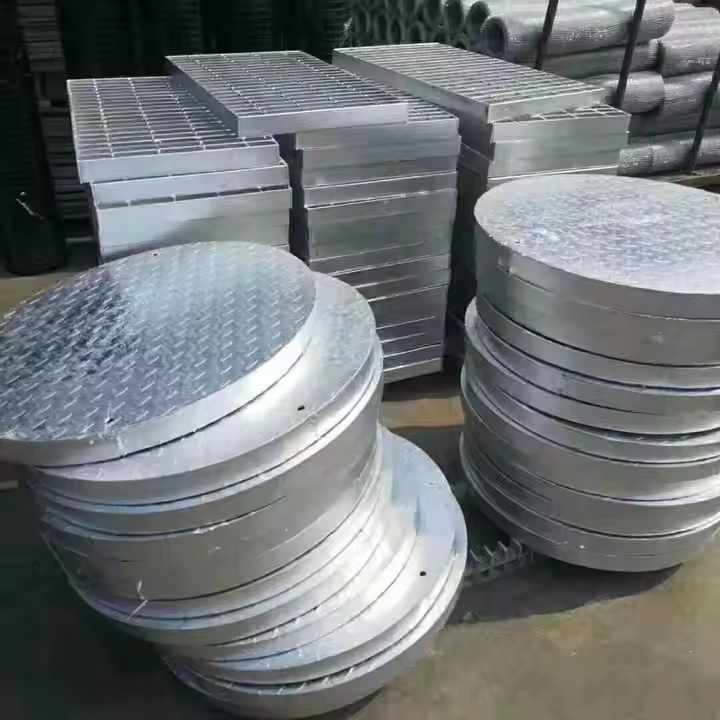

Composite steel grating plate
Composite steel grating is a product composed of steel grating with a certain spanning ability and patterned plates with sealed surfaces. It can be made up of any type of steel grating and patterned steel plates of different thicknesses.
Quantity :
Composite steel grating introduction

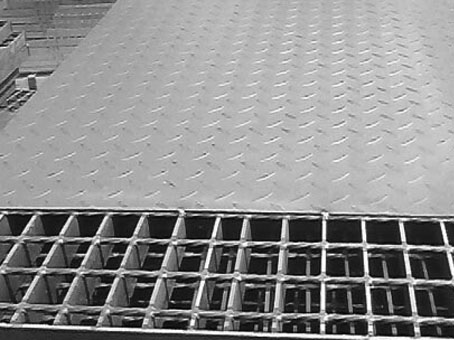

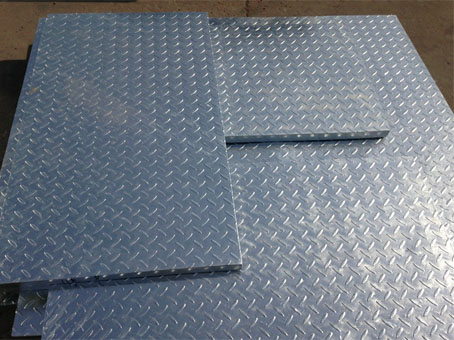

Composite steel grating is a product composed of a steel grating with a certain cross-hatching capacity and a patterned plate with a sealed surface. It can be composed of any type of steel grating and patterned steel plate with different thicknesses. This not only takes advantage of the anti-slip and non-hollow characteristics of patterned steel plates, but also fully utilizes the good bearing capacity of steel grating. By using patterned steel plates and section steel as support instead of just using them alone, material usage is greatly reduced and costs are saved. After hot-dip galvanizing treatment, there may be warpage and deformation due to thermal energy, especially when using larger steel grating plates, so please pay attention to the choice of materials.
Characteristics of composite steel grating:
- Composite steel grating has the characteristics of high strength, lightweight structure, strong corrosion resistance, and long-lasting durability.
- The shape of the composite steel grating or composite steel grid plate is beautiful, with a shiny surface, and composite steel grid plate does not accumulate dirt. Composite steel grating does not accumulate rain or snow on rainy or snowy days, and it can self-clean, making it easy to maintain.
- The composite steel grating or composite steel grid plate has good ventilation, lighting, heat dissipation, anti-slip, and explosion-proof properties. It is also very easy to install and disassemble.
Installation method of composite steel grid plate
- Directly weld the composite steel grating or step plate onto the supporting steel structure, and brush two coats of zinc-rich powder paint on the weld.
- Use composite steel grid plate special installation clips for installation, without damaging the galvanized layer and easy to disassemble and install. Each set of installation clips includes one upper clip, one lower clip, one bolt, and one nut.
- Stainless steel installation clips or bolt connections can be provided according to needs.
- The installation clearance of the composite steel grid plate is generally 100mm.
- During installation, special attention should be paid to ensure firm and reliable installation, and to regularly check to prevent the installation clips from loosening or falling off. It is recommended to weld or add rubber pads to the composite steel grid plate close to vibration.
The uses of composite steel grid plate:
Generally, composite steel grating is made with series 3 steel grating as the base plate, but series 1 or series 2 can also be used based on customer requirements. If a steel mesh is added on the surface or bottom of the composite steel grid plate, it can prevent small objects from falling and also protect against rodents and other small animals in use for granaries, restaurants, and warehouses. In addition, composite steel grating is widely used for platforms, walkways, docks, trench covers, manhole covers, ladders, and other applications in industries such as power plants, chemical plants, oil refineries, steel plants, paper mills, machinery factories, cement plants, municipal engineering, sewage treatment plants, environmental sanitation projects, and other fields.
Ordering Guide for Composite Steel Grating Panels
1. Specify the material and surface treatment method for composite steel grating according to requirements.
2. Select the appropriate composite steel grid plate model and indicate the thickness of the patterned plate according to the load table.
3. Provide the size and quantity of composite steel grating, and indicate the direction of composite steel grid plate (i.e. span direction, this size is usually written at the back and followed by"LB"to distinguish).
4. For large-scale use of composite steel grating, please consult our technical personnel for easy layout design.
5. For aesthetic purposes, composite steel grid plate is usually arranged in accordance with the pattern standard width (1060mm or 1250mm).
6. Composite steel grating or composite steel grid plateis usually priced per square meter.
