Model No: 358 fence
Manufacturers Direct Sales of Safety Anti-Climbing Galvanized 358 Fence

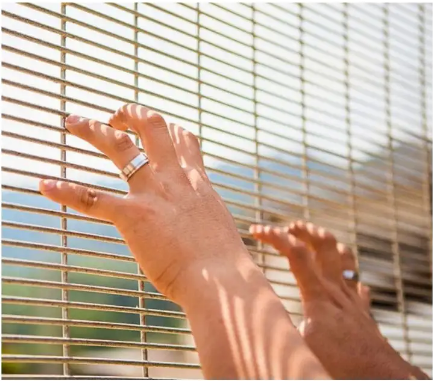

358 wire mesh fence is made of high-quality galvanized steel with a wire diameter of 4mm. It is hard to climb and cut, and the tight mesh spacing of 76.2mm x 12.7mm makes it impossible for intruders to put their fingers or toes through. With excellent corrosion resistance, 358 anti-climb fence is suitable for outdoor use in various harsh environments. Moreover, our 358 fence is easy to assemble, and the hot-dip galvanized surface treatment provides long-lasting protection. 358 high security fence is widely used in high-risk areas such as prisons, military bases, highways, and border areas. Our product is backed by our commitment to quality, reliability, and customer satisfaction.
Delivery :
FOB
minimum order :
100 sheets
Supply Ability :
5000sheets / Month
Stock Time :
7-20Day
Country of Origin :
China
Quantity :
358 Anti-Climb Mesh---the welded panel barrier provides the highest level of security
358 anti-climb mesh is a highly attractive fencing solution that can be used for varying custom enclosures or as infill panels. It is an easy to install fencing solution with good air flow and visibility, yet it is too narrow for fingers, toes or hand tools. It is virtually impossible to climb. Robust wire and welded joints make cutting through the mesh very difficult with conventional bolt or wire cutters.
Key Features of 358 Anti-Climb Mesh

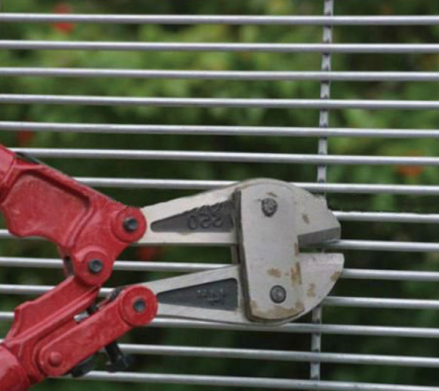

• Vandalism resistance of 358 Anti-Climb Mesh: The finger-resistant apertures and 4mm wire diameter make it almost impossible to climb or cut through with bolt or wire-cutters.
• Stability of 358 Anti-Climb Mesh: With its rigid construction and minimal wind resistance, 358 anti-climb mesh fence is very stable and suitable for use with electronic alarms.
• Good visibility of 358 Anti-Climb Mesh: Despite the small mesh aperture, 358 Anti-Climb Mesh provides clear viewing visibility head-on and from angles, making it ideal for camera surveillance.
• Durability of 358 Anti-Climb Mesh: 358 Anti-Climb Mesh requires minimal maintenance and has a long life expectancy. Mr Fencer offers a 5-year warranty on this product.
358 Anti-Climb Mesh applications
•Architectural: Stairwell enclosures, pedestrian bridge screens, protective screens
•Retail: Shopping centres, carpark buildings
•Correctional Facilities: Prisons, youth justice centres
•Animal Enclosures: Zoos, dog pounds
•Utilities: Power sub-stations, water treatment facilities
•Educational Facilities: Schools, university campuses
• Restricted Areas: Airports, goods delivery areas, motorway security
•Recreational: Sports grounds, community centres
358 Anti-Climb Mesh panel size
• Wire Diameter: 4.0 mm
• Mesh Size:75 × 12.5 mm
• Height:1.2 m, 1.755 m, 3.1 m
• Horizontal Frame：60 × 40 mm (Top and bottom edge)
• Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting
| Specification of 358 Anti-Climb Mesh | ||||
| Fence height (m) | Panel size (Height × Width) (mm) | Fence Post (Height × Size × Thick) (mm) | Clamp Bar (Height × Width × Thick) (mm) | Interior or corner Clamp No. (pcs) |
| 2 | 2007*2515 | 2700*60*60*2.5 | 2007*60*5 | 7 or 14 |
| 2.4 | 2400*2515 | 3100*60*60*2.5 | 2400*60*5 | 9 or 18 |
| 3 | 2997*2515 | 3800*80*80*2.5 | 2997*80*6 | 11 or 12 |
| 3.3 | 3302*2515 | 4200*80*80*2.5 | 3302*80*6 | 12 or 24 |
| 3.6 | 3607*2515 | 4500*100*100*3.0 | 3607*100*7 | 13 or 26 |
| 4.2 | 4204*2515 | 5200*100*100*4.0 | 4204*100*8 | 15 or 30 |
| 4.5 | 4496*2515 | 5500*100*100*5.0 | 4496*100*8 | 16 or 32 |
| 5.2 | 5207*2515 | 6200*120*120*5.0 | 5207*100*8 | 18 or 36 |

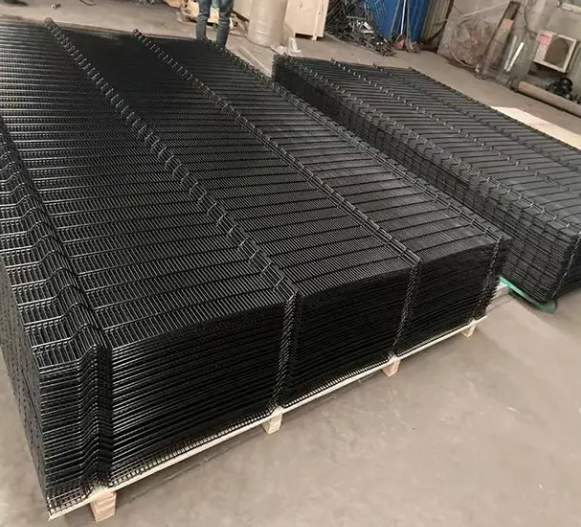

Packaging and transportation method of 358 Anti-Climb Mesh
Packaging materials: Use sturdy packaging materials, usually wooden boxes or plastic films, to prevent crushing or damage during transportation.
Packaging method: Use professional packaging method to reasonably layer and fix the mobile guardrail net to ensure stability during transportation.
Marking: Mark the product name, specifications, quantity and other information on the package to facilitate identification and management and ensure that the required guardrails can be found smoothly during construction.
Transportation method: Choose the appropriate transportation method according to the specific situation, such as land transportation, sea transportation, railway transportation, etc., to ensure that the product reaches the use site safely.
Safety protection: Take necessary safety protection measures during transportation to ensure that the mobile guardrail network is not damaged by external damage during
